X-RAY TUBE EQUIVALENT TO TOSHIBA E7242

Short Description:

Application: X-ray tube assembly for all routine diagnostic examinations with conventional

or digital radiographic and fluoroscopic workstations

◆The insert features : 12.5° Rhenium-Tungsten molybdenum target (RTM)

◆Focal spots: Small 0.6, Large: 1.2

◆Maximum tube voltage : 125kV

◆Accommodated with IEC60526 type high-voltage cable receptacles

◆High voltage generator should accord with with IEC60601-2-7

◆IEC Classification (IEC 60601-1:2005):Class I ME EQUIPMENT

Send email to us

Product Detail

Payment & Shipping Terms:

Product Tags

Standard Reference

Standard Reference	Titles
EN 60601-2-54:2009	Medical electrical equipment - Part 2-54: Particular requirements for the basic safety and essential performance of X-ray equipment for radiography and radioscopy
IEC60526	High-voltage cable plug and socket connections for medical X-ray equipment
IEC 60522:1999	Determination of the permanent filtration of X-ray tube assemblies
IEC 60613-2010	Electrical, thermal and loading characteristics of rotating anode X-ray tubes for medical diagnosis
IEC60601-1:2006	Medical electrical equipment - Part 1: General requirements for basic safety and essential performance
IEC 60601-1-3:2008	Medical electrical equipment - Part 1-3: General requirements for basic safety and essential performance - Collateral Standard: Radiation protection in diagnostic X-ray equipment
IEC60601-2-28:2010	Medical electrical equipment - Part 2-28: Particular requirements for the basic safety and essential performance of X-ray tube assemblies for medical diagnosis
IEC 60336-2005	Medical electrical equipment-X-ray tube assemblies for medical diagnosis-Characteristics of focal spots

Description

●The designation is composed as follows:

MWHX7110A	Tube	A	High voltage socket with 90 degree direction
MWHX7110A	MWTX71-0.6/1.2-125	B	High voltage socket with 270 degree direction

Technical Data

Property	Specification		Standard
Nominal input power(s) of the anode	F 1	F 2	IEC 60613
Nominal input power(s) of the anode	20kW(50/60Hz)	40kW(50/60Hz)
Anode heat storage capacity	110 kJ ( 150kHU)		IEC 60613
Maximum cooling capacity of the anode	500W

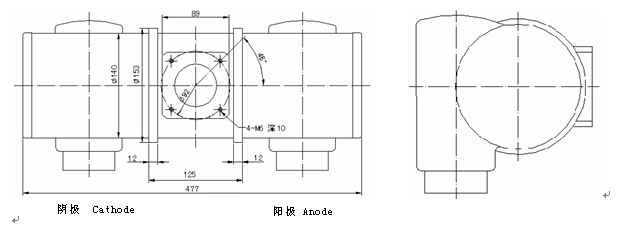

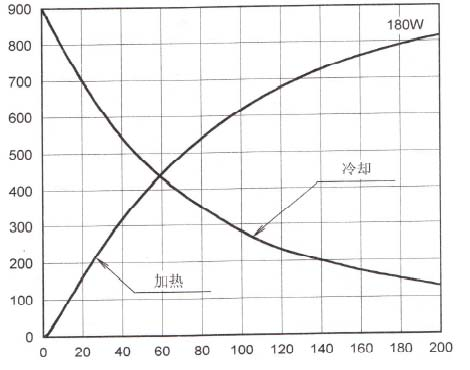

Heat storage capacity	900kJ
Max. continuous heat dissipation without Air-circular	180W
Anode materialAnode top coating material	Rhenium-Tungsten-TZM(RTM) Rhenium-Tungsten-(RT)
Target angle (Ref: reference axis)	12.5 °		IEC 60788
X-ray tube assembly inherent filtration	1.5 mm Al / 75kV		IEC 60601-1-3
Focal spot nominal value(s)	F1(small focus)	F2(large focus)	IEC 60336
Focal spot nominal value(s)	0.6	1.2
X-ray tube nominal voltageRadiographicFluoroscopic	125kV 100kV		IEC 60613

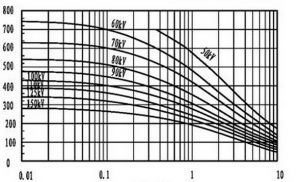

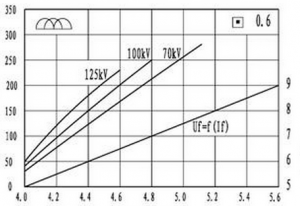

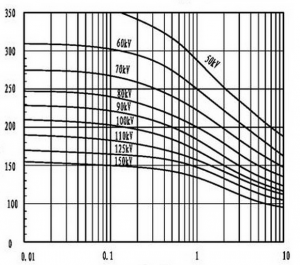

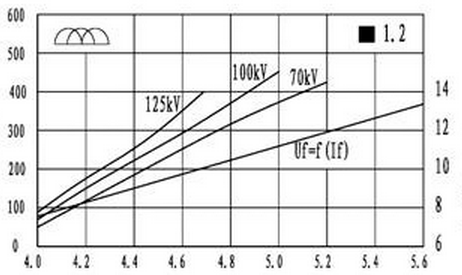

Data on cathode heating Max. current Max voltage	≈ /AC, < 20 kHz
	F1	F 2
	5.1A ≈7～9V	5.1 A ≈12～14 V
Leakage radiation at 150 kV / 3mA in 1m distance	≤ 0.5mGy/h		IEC60601-1-3
Maximum radiation field	443×443mm at SID 1m
X-ray tube assembly weight	Approx. 18 kg

Conditions for operation,storage and transport

Limits	Operation Limits	Transport and Storage Limits
Ambient temperature	From 10℃to 40℃	From- 20℃to 70℃
Relative humidity	≤75%	≤93%
Barometric pressure	From 70kPa to 106kPa	From 70kPa to 106kPa

Stator key values

1-phase stator

Test point	C-M	C-A
Winding resistance	≈18.0…22.0Ω	≈45.0…55.0Ω
Max.permissible operating voltage(run-up)	230V±10%
Recommend operating voltage(run-up)	160V±10%
Braking voltage	70VDC
Run-on voltage in exposure	80Vrms
Run-on voltage in fluoroscopy	20V-40Vrms
Run-up time(depending on starter system)	1.2s

Caution in Operation

1 .X-ray Radiation protection

This product fulfills the requirements of IEC 60601-1-3.

This X-ray tube assembly emits X-ray radiation in operation.Only correspondingly qualified and trained personnel are therefore allowed to operate the X-ray tube assembly.

Relevant physiologic effects may cause harm to patient,system manufacture should take proper protection to avoid ionization radiation.

2.Dielectric 0il

X-ray tube assembly has dielectric 0il contained for high voltage stability. As it is poisonous for human health，if it is exposed to the non-restricted area，it should be disposed as following to the local regulation.

3 .Operation Atmosphere

X-ray tube assembly is not allowed to be used in the atmosphere of flammable or corrosive gas·

4．Adjust the Tube Current

Depending on the operating conditions，the filament characteristics might be changed.

This change might Iead to the over rate exposure to X-ray tube assembly.

To prevent the X-ray tube assembly from being damaged，adjust the tube current regularly.

Besides when the X-ray tube has arcing Problem in a long time use，adjustment of the tube current is required.

5.X-ray Tube Housing Temperature

Do not touch on X- ray tube housing surface just after operation due to high temperature.

Stay X-ray tube to be cooled.

6 .Operating limits

Prior to usage，please confirm the environmental condition is within the operating Iimits.

7 .Any Malfunction

P1ease contact to SAILRAY immediately，if any malfunction of the X-ray tube assembly is noticed.

8.Disposal

The X-ray tube assembly as well as the tube contain materials such as oil and heavy metals for which environmentally friendly and proper disposal in accordance with the valid national legal regulations must be assured.Disposal as domestic or industrial refuse is forbidden.The manufacturer possesses the required technical knowledge and will takes the X-ray tube assembly back for disposal.

Please contact customer service for this purpose.
