X-ray shielding Lead glass 36 ZF2
X-ray shielding Lead glass 36 ZF2
Key benefits
·Shields against X-Ray from equipment operating in the 80 to 300kV range
·High Barium and lead content providing optimum protection with excellent visual clarity
·Supplied as polished plates, cut accoring to customer requirements up to 2400X 1200 mm, allowing architects to design viewing windows with a wider field of vision.
·Also available in sizes cut specifically to customer requirements (with cut edges ground or polished and finished with safety chamfers.
·Extensive stocks held in all plates sizes and thicknesses at distribution points worldwide, for immediately cut and dispatchment.
·Viewing windows for X-Ray.Angiography Rooms,CT scans
·Screen for medical diagnostics
·Protection windows in laboratories.
·Airport security X-ray screens
·Lenses for safety goggles
Nuclear industry lead glass.The glass is mainly used in nuclear power plants, Nuclear Research Institute laboratory.
Can be customized according to customer drawings product.
Lead glass special processing:
According to customer
demand, lead glass shape machining,driling and explosion.
ZF series optical lead glass technical parameters
| Serial Number | ZF3 | ZF6 | ZF7 | K509 |
| The product structure | QuartzSand 34.15% | QuartzSand 31% | QuartzSand 26% | QuartzSand 65% |
| PbO 61% | PbO 65% | PbO 70% | H3BO3 12% | |
| K2O 2.5% | K2O 2.7% | K2O 2.8% | K2O 10% | |
| Sb2O30.15% | Sb2O30.25% | Sb2O3 0.33% | Na2O 10% | |
| As2O5 0.20% | As2O50.45% | As2O5 0.68% | CeO2 1.5% | |
| BaO 1.2% | ||||
| The Rest 0.3% | ||||
| Density | 4.4g/cm3 | 4.78g/cm3 | 5.2g/cm3 | 2.52g/cm3 |
| Refractive Index | 1.7174 | 1.7552 | 1.8062 | 1.5163 |

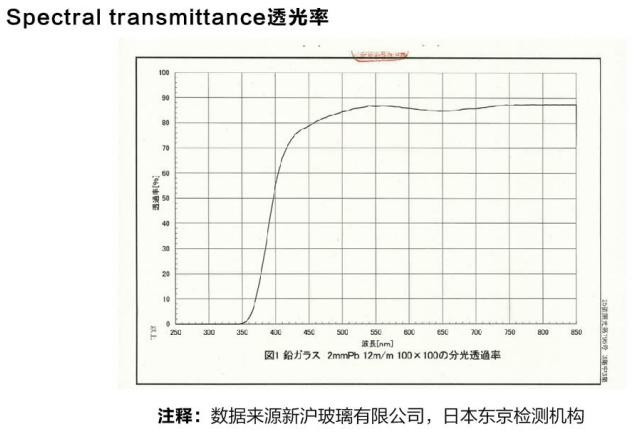

| Light Transmittance | 86% | 86% | 89% | 86% |
| Lead Equivalent Lead Glass Thickness unit: 10mm | 0.35 Gamma-Ray、Neutron(National Standards);0.21 X-Ray(NationalStandards) | 0.41 Gamma-Ray、Neutron(National Standards);0.27 X-Ray(NationalStandards) | 0.43 Gamma-Ray、Neutron(National Standards);0.29 X-Ray(NationalStandards) |
Performance of medical protective lead glass
| Medical protective glass thicknes | 8mm | 10mm | 12mm | 15mm | 18mm | 20mm |
| @100KV(mmPb) | 1.6 | 2.2 | 2.5 | 3.2 | 3.8 | 4.3 |
| @150KV(mmPb | 1.5 | 2 | 2.4 | 3 | 3.6 | 4 |
X-Ray Shielding Lead glass, model ZF2 ,are mainly used in X-ray room, x-ray operation room and CT room of hospital compartment to shield x-ray, whose density is 4.12gm/Cm, lead equivalent is 0.22mmpb and light transmittance rate is more than 85%.
Our quality standard specifies that "no visible bubbles, inclusions, scratch or sleeks, or vein are allowed by observation at one meter distance".
| Place of Origin: | China |
| Brand Name: | Sailray |
| Certification: | CE |
| Model Number: | ZF2 |
X-Ray Shielding Lead glass can be integrated into all room shielding systems, to offer protection again x-rays and gamma, safely allowing the operator to view their patient in a protective environment, including:
X-ray rooms
CT Scanning rooms
Medical diagnostic rooms
Laboratories
Radiation protection doors
Nuclear doors
Medical performance doors
Surgery rooms
Radiation stations
| Type | Density | Lead equivalent | light transmittance | PBo% |
| ZF2 | 4.12 | 0.22mmpb | >85% |

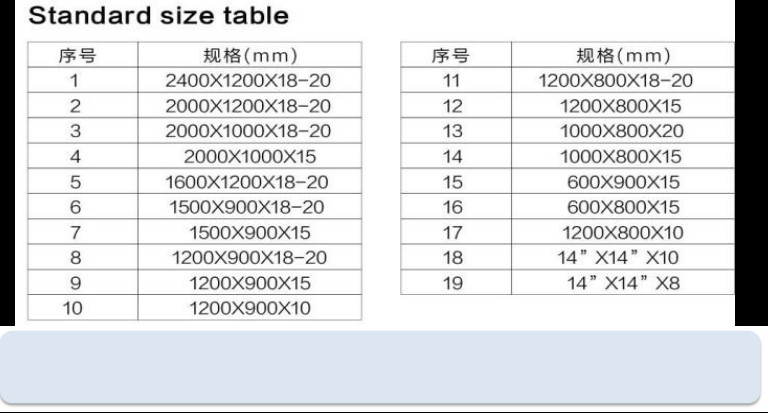

1.2400X 1200 X 18~20mm
2.2000X 1200 X 18~20mm
3.2000X1000 X 18~20mm
4.2000X1000 X 15mm
5.1600X1200 X18~20mm
6.1500X 900 X 18~20mm
7.1500X 900 X 15mm
8.1200X 900 X 18~20mm
9.1200X800 X 18~20mm
10.1200X800 X 15mm
11.1200X800 X 10mm
12.1200X 600 X 10mm
13.1000X 800 X 20mm
14.1000X 800 X 15mm
15.1000X 800 X 10mm
16.900 X600 X 15mm
17.900 X600 X 10mm
18.800 X600 X 15mm
19.800 X600 X 10mm
20..750 X750 X 10mm
21.14' X 14'X 10mm
22. 8' X10'X 8mm
Other specifications can be customizable according to different requirements.
High protection against gamma and x-rays.
High transparency.
Welcome customer's demands
High quality, competitive price, excellent service
| Minimum Order Quantity: | 1PC |
| Price: | |
| Packaging Details: | WOODEN BOX |
| Delivery Time: | 14 WORKING DAYS AFTER RECEIPT OF THE PAYMENTS |
| Payment Terms: | T/T WESTERN UNION |
| Supply Ability: | 200pcs/month |
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: 100pcs per carton or customized according to the quantity
Delivery Time: 1~2 weeks according to the quantity
Payment Terms: 100% T/T in advance or WESTERN UNION
Supply Ability: 1000pcs/ month
