Rotating Anode X-ray Tubes 22 MWTX64-0.3_0.6-130

Rotating Anode X-ray Tubes 22 MWTX64-0.3_0.6-130

Rotating Anode X-ray Tubes 22 MWTX64-0.3_0.6-130

Short Description:

Type: Rotating anode x-ray tube
Application: For Medical diagnosis x-ray unit, C-arm x-ray system
Model: MWTX64-0.3/0.6-130
Equivalent to IAE X20P
Integrated high-quality glass tube


Product Detail

Payment & Shipping Terms:

Product Tags

Description

MWTX64-0.3/0.6-130 tube has a double focus designed for use with standard-speed anode rotation for high energy radiographic and cine-fluoroscopic operations.

The high-quality integrated tube in glass design features two superimposed focal points and a reinforced 64mm anode. Its high anode heat storage capacity enables its wide use in standard diagnostic procedures with conventional radiography and fluoroscopy systems. Specially designed anodes allow for higher heat dissipation rates, resulting in increased patient throughput and longer product life.

High-density rhenium-tungsten compound targets ensure consistently high dose rates throughout the lifetime of the tube. Extensive technical support facilitates easy integration into system products.

Applications

MWTX64-0.3/0.6-130 rotating anode X-Ray Tube is especially designed for Medical diagnosis x-ray unit.

Rotating anode X-ray tube for the purpose of fluoroscopy X-ray procedures.

Specifications

Maximum Operating Voltage 130KV
Focal Spot Size 0.3/0.6
Diameter 64mm
Target Materia RTM
Anode Angle 10°
Rotation Speed 2800RPM
Heat Storage 200kHU
Maximum Continuous Dissipation 475W

Filament Characteristics

Small filament fmax=5.4A ,Uf=7.5±1V
Big filament Ifmax=5.4A,Uf=10.0±1V
Inherent Filtration 1mmAL
Maximum Power 5KW/17KW

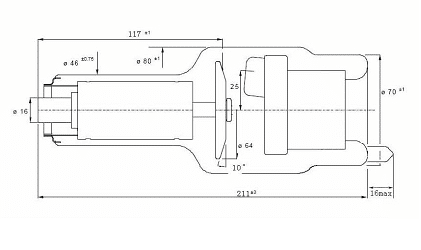

Outline Drawing

SRMWTX64-0.3-0.6-130

Filament emission characteristics

loading chart

Cautions!

X-ray tube will emit X–ray when it is energized with high voltage, Special knowledge should be required and cautions need to be taken when handling it.

1. Only a qualified specialist with X-Ray tube knowledge should assemble, maintain and remove the tube. When mounting tube inserts adopt proper caution, in order to avoid glass bulb breaking and fragments projection. Please use protective gloves and glasses.

2. Tube insert connected to H.V. supply is a radiation source: be sure to take all necessary safety cautions. 3. Wash thoroughly with alcohol the external surface of tube insert (care of fire risk). Avoid contact of dirty surfaces with cleaned tube insert.

4. Clamp system inside housing or self-contained units must not mechanically stress the tube.

5. After installation, check the right working of the tube (no fluctuation of tube current nor crackling).

6. Comply with insert thermal parameters, planning and programming the exposure parameters and cooling pauses. Housing or self-contained units must be provided with an adequate thermic protection.

7. Voltages indicated in charts are valid for transformer supplied with ground center.

8. It is extremely important to observe the connection diagram and the grid resistor value. Any change could modify the dimensions of the focal spot, also varying diagnostic performances or overloading anode target.

9. Tube inserts contain environment polluting materials, particularly lead liner tubes. Please apply to qualified operator for waste disposal, according to local regulation requirements.

10. When any abnormalities are found during operation, immediately switch off the power supply and contact the service engineer.

Competitive Advantage

Standard speed anode rotation with silenced bearings
High density compound anode (RTM)
Elevated anode heat storage capacity and cooling
Constant high dose yield
Excellent lifetime
