Rotating Anode X-ray Tubes 21 SRMWTX64-0.6_1.3-130
Rotating Anode X-ray Tubes 21 SRMWTX64-0.6_1.3-130

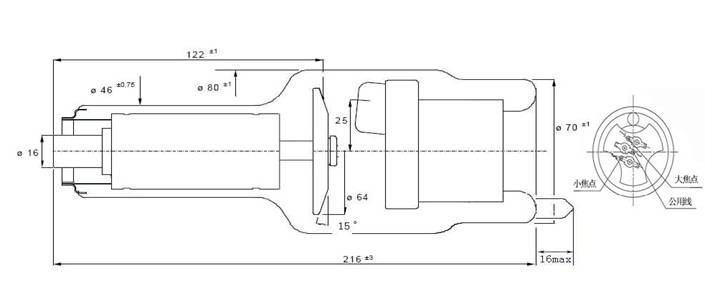

SRMWTX64-0.6/1.3-130 tube has a double focus designed for use with standard-speed anode rotation for high energy radiographic and cine-fluoroscopic operations.
The integrated high quality tube with glass design has two super imposed focal spots and a rein-forced 64 mm anode. The high anode heat storage capacity ensures a wide range of applications for standard diagnostic procedures with conventional radiographic and fluoroscopy systems.
A special designed anode enables an elevated heat dissipation rate which leads to a higher patient through- put and a longer product life.
A constant high dose yield during the entire tube life is ensured by the high density rhenium-tungsten compound target. Ease of integration into system products is facilitated by extensive technical support.
XD65-0.6/1.3-130 rotating anode X-Ray Tube is especially designed for Medical diagnosis x-ray unit.
| Maximum Operating Voltage | 130KV |
| Focal Spot Size | 0.6/1.3 |
| Diameter | 64mm |
| Target Materia | RTM |
| Anode Angle | 15° |
| Rotation Speed | 2800RPM |
| Heat Storage | 107kHU |
| Maximum Continuous Dissipation | 300W |
| Small filament | fmax=5.4A ,Uf=7.5±1V |
| Big filament | Ifmax=5.4A,Uf=10.0±1V |
| Inherent Filtration | 1mmAL |
| Maximum Power | 11KW/32KW |
Standard speed anode rotation with silenced bearings
High density compound anode (RTM)
Elevated anode heat storage capacity and cooling
Constant high dose yield
Excellent lifetime
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: 100pcs per carton or customized according to the quantity
Delivery Time: 1~2 weeks according to the quantity
Payment Terms: 100% T/T in advance or WESTERN UNION
Supply Ability: 1000pcs/ month
