OEM High Quality Hand Switch X-Ray Supplier - X-ray Push button Switch Omron Microswitch Type 19 HS-01-1 – Sailray

Place of Origin: zhejiang, China

Certification: CE, ROHS approval

Model Number: HS-01

Product Name: X-ray exposure hand switch Brand Name:SAILRAY
Protection Level:IP67
Max. Current: 2A Max. Voltage:30VDC
Type: Inner Omron microswitch type Electrical Life: 400,000 times Mechanical Life:1,000,000 times Shell material:ABC plastic Length:3m, 5m, 10m
Cores: 3 core, 4 core Customization:Available
Connector: can be fixed to DB9 connector or RJ45, RJ11 connector

X-ray exposure Hand switch is the electric control parts, can be used for controlling the on-off of electrical signal, photographic equipment and medical diagnostic X-ray photography exposure. X-ray exposure Hand switch is a hand- held switch which has two stepping switches and with fixed trestle.

X-ray exposure Hand switch is comply with the national safety standards: GB15092.1-2003 “the first part of the medical electrical equipments: general requirements for safety” related provisions. Get CE ROHS approval.

Applicable to x-ray exposure of radiography or fluoroscopy equipment
X ray hand exposure hand switch is mainly used on portable x ray, mobile x ray, stationary x ray,analog x ray,digital x ray,radiography x ray etc x ray
equipment.
it is also applicable to beauty laser device,healthy recovery device etc field.

3-core switch

4-core switch

Streamline design outlook, comfortable handle.
Shell adopt ABC engineering plastic, anti-shock and fire retardant . Mechanical life of 1,000,000 times above .
Electrical life of 400,000 times above.

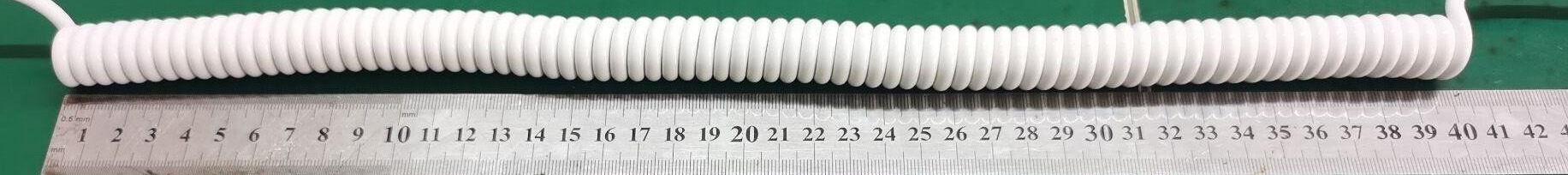

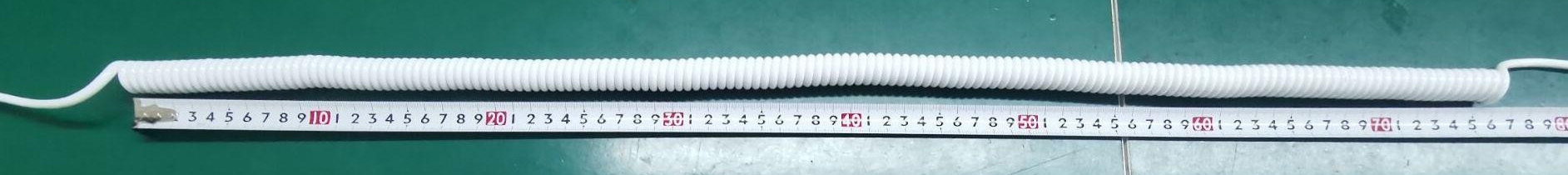

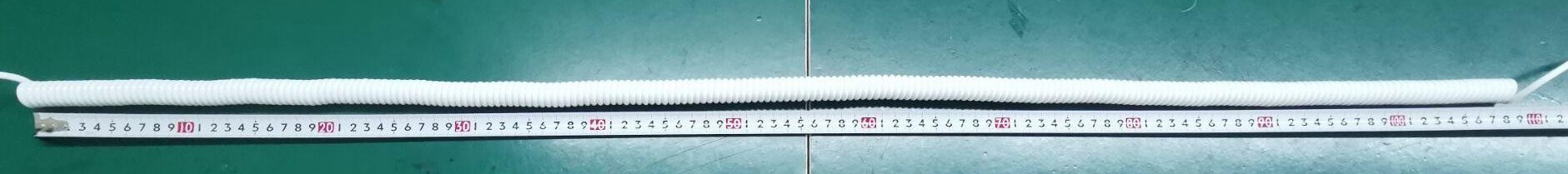

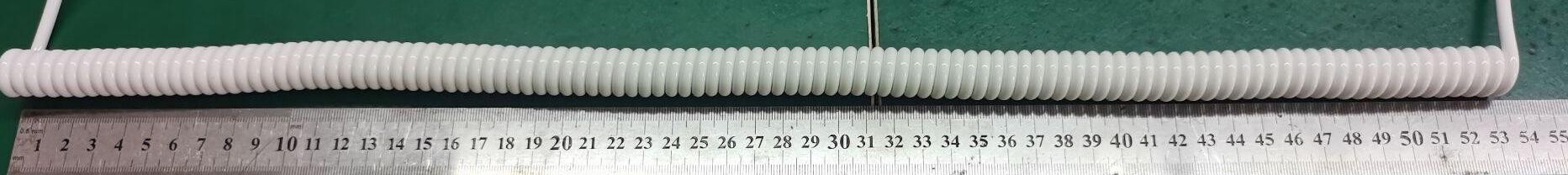

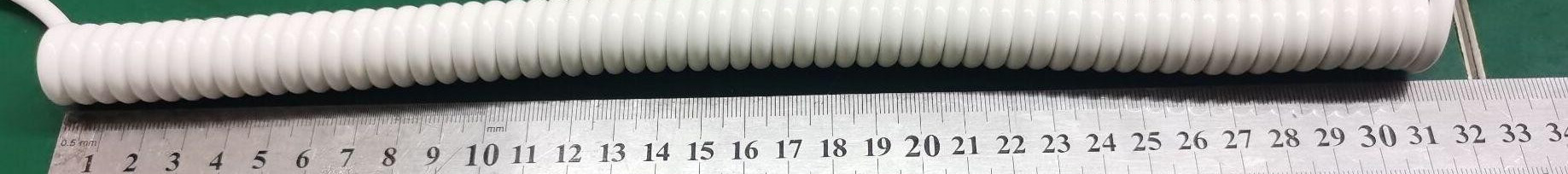

3m-wire (30cm spring coil wire)

4m-wire (40cm spring coil wire)

5m-wire (53cm spring coil wire)

7m-wire (76cm spring coil wire)

10m-wire (108cm spring coil wire)

The common problems on the hand switch HS-01

1.Can you accept customize hand switch?
Yes. Please feel free to send us your detail requirement by email . You will get our reply in 24 hours.

2.Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.

3.What’s the lead time for regular order?
3-5 days for order quantity lower than 100pc hand switch; For more quantity, usually 15 days.

4.Can I get a discount?
Yes, for the order quantity more than 50 pcs hand switch, please contact us to get the best price.

5.What is the quality warranty?
We offer 12 months warranty after the hand switch is delivered.

Better performance with Omron micro switch
Better elasticity of coil cord with PU cover and pure copper wire
Longer Mechanical life and Electrical life

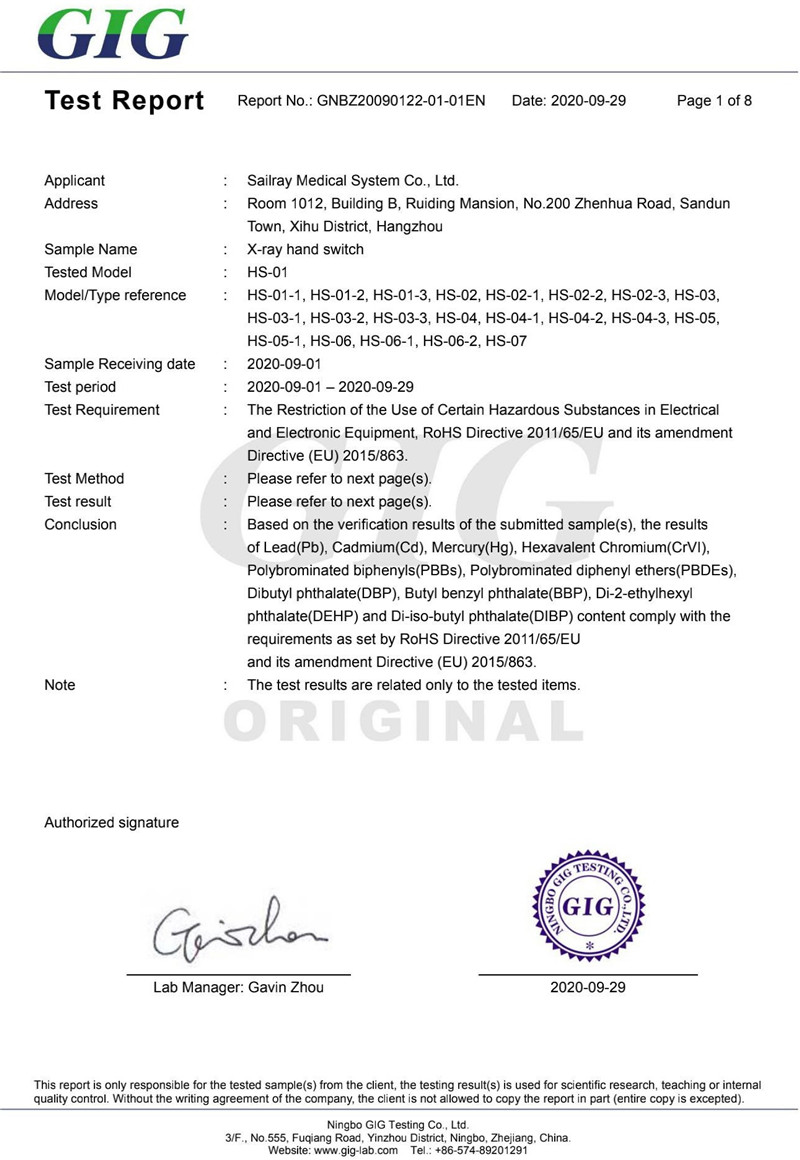

CE, ROHS approval.

X-ray machine Hand switch is an electric control parts, can be used for controlling the on-off of electrical signal, photographic equipment and medical diagnostic X-ray photography exposure. X-ray exposure Hand switch, used OMRON micro switch as component contacts, is a hand-held switch which has two stepping switches and with fixed trestle.

This type of x-ray exposure hand switch can be 3 cores and 4 cores. The coil cord length can be 2.7m and 4.5m after fully stretched. Its electrical life can reach to 400 thousand times while its mechanical life can reach to 1.0millioin times.

X-ray exposure Hand switch is comply with the national safety standards: GB15092.1-2003 “the first part of the medical electrical equipments: general requirements for safety” related provisions. Get CE, ROHS approval.

X ray hand exposure hand switch is mainly used on portable x ray, mobile x ray, stationary x ray,analog x ray,digital x ray,radiography x ray etc x ray equipment. it is also applicable to beauty laser device,healthy recovery device etc field.

3-core switch

  4-core switch

Cores:three cores, four cores
Type: two step
Useful time(Mechanical life): 10 million times
Useful time(Electrical life): 400 thousand times

When pressing the button, it is connected while loosing it is cut. Press the button to the first stage, the first grade is connected. This is for x-ray preparation. Then do not loose your thumb, and press the button to the bottom, the second grade is connected while the first grade remains connected. This is for x-ray operation.

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: 100pcs per carton or customized according to the quantity

Delivery Time: 1~2 weeks according to the quantity

Payment Terms: 100% T/T in advance or WESTERN UNION

Supply Ability: 1000pcs/ month
