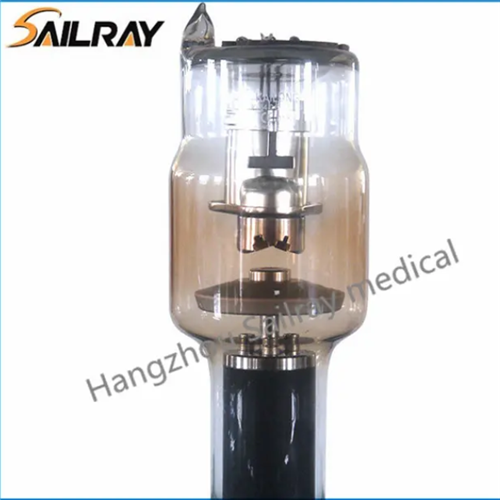

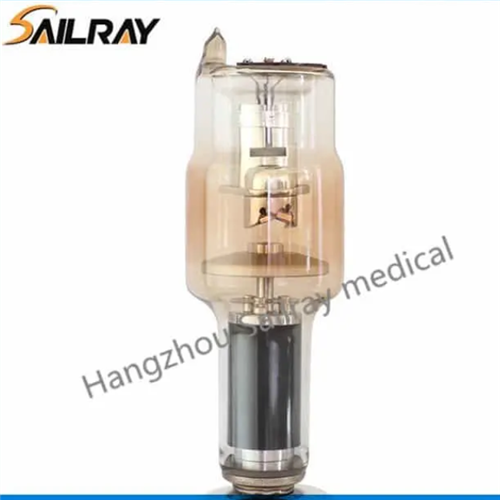

Rotating anode X-ray tubes are essential components in modern radiographic imaging systems, providing high-quality images, increased efficiency, and reduced exposure times. However, like any complex technology, they can be subject to issues that can affect their performance. Understanding common issues and how to troubleshoot them can help technicians maintain optimal functionality and extend the life of these critical devices.
1. Overheating
One of the most common problems with rotating anode X-ray tubes is overheating. Overheating can be caused by long exposure times, insufficient cooling, or a faulty cooling system. Overheating can cause damage to the anode and cathode, resulting in reduced image quality and potential tube failure.
Troubleshooting Steps:
- Check exposure settings: Make sure the exposure time is within the recommended limits for your specific program.
- Check Cooling System: Check that the cooling system is operating properly. This includes checking the coolant level and ensuring the fan is operating properly.
- Allow Cooldown Time: Implement a cooldown protocol between exposures to prevent overheating.
2. Image Artifacts
Artifacts in X-ray images can come from a variety of sources, including problems with the rotating anode itself. These artifacts can appear as streaks, spots, or other irregularities that can obscure diagnostic information.
Troubleshooting Steps:
- Inspect anode surface: Inspect the anode for signs of wear, pitting or contamination. Damaged anodes may develop defects.
- Check Alignment: Make sure the X-ray tube is properly aligned with the detector. Misalignment may cause image distortion.
- Check Filtering: Verify that appropriate filters are installed to minimize scattered radiation, which can cause image artifacts.
3. Pipeline failure
Rotating anode X-ray tubes can fail completely due to a variety of factors including electrical problems, mechanical wear or thermal stress. Symptoms of tube failure may include a complete loss of X-ray output or erratic performance.
Troubleshooting Steps:
- Check Electrical Connections: Check all electrical connections for signs of wear or damage. Loose or corroded connections can cause intermittent failures.
- Monitor usage patterns: Record the number of times and how long it is used. Excessive use and improper maintenance can lead to premature failure.
- Perform regular maintenance: Implement a routine maintenance schedule, including checking anodes and cathodes for wear and replacing components as needed.
4. Noise and vibration
Excessive noise or vibration during operation may indicate a mechanical problem within the rotating anode assembly. If not resolved promptly, it may cause further damage.
Troubleshooting Steps:
- Check the bearings: Check the bearings for wear or damage. Worn bearings can cause increased friction, which can cause noise and vibration.
- Balanced Anode: Make sure the anode is properly balanced. An unbalanced anode will cause excessive vibration during rotation.
- Lubricate moving parts: Regularly lubricate the moving parts of the X-ray tube to reduce friction and wear.
in conclusion
Troubleshooting common issues with rotating anode X-ray tubes is critical to maintaining the efficiency and reliability of your radiographic imaging system. By understanding potential problems and following systematic troubleshooting steps, technicians can ensure these important components continue to perform at their best. Regular maintenance, proper use, and prompt attention to any signs of trouble will help extend the life of your rotating anode X-ray tube and improve the quality of your diagnostic imaging.
