Medical X-ray Tube CEI OX105-6

Medical X-ray Tube CEI OX105-6

Medical X-ray Tube CEI OX105-6

Short Description:

Type: Station anode x-ray tube
Model: KL20-2.8-105
Application: For general diagnostic x-ray unit
Equivalent to CEI OX105-6
Integrated high quality glass tube


Product Detail

Payment & Shipping Terms:

Product Tags

Description

KL20-2.8-105 stationary X-Ray tube is especially designed for general diagnostic x-ray unit and available for a nominal tube voltage with self-rectified circuit.
KL20-2.8-105 tube has one focus.
The integrated high quality tube with glass design has one super imposed focal spot and a reinforced anode.
The high anode heat storage capacity ensures a wide range of applications for general diagnostic x-ray application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support.

Applications

KL20-2.8-105 stationary X-Ray tube is especially designed for general diagnostic x-ray unit and available for a nominal tube voltage with self-rectified circuit.

Technical data

Nominal  Tube Voltage 105kV
Nominal Inverse Voltage 115kV
Nominal Focal Spot 2.8 (IEC60336/1993)
Max Anode Heat Content 30000J
Max. Anode Cooling Rate 250W
Target Angle 19°
Filament Characteristics 3.0 – 5.0A,   6.0 – 10.0V
Permanent Filtration Min. 0.8mmAl/50KV(IEC60522/1999)
Target Material Tungsten
Max. current continuous service 3.0mA@100kVAC
Nominal Anode Input Power 6000W

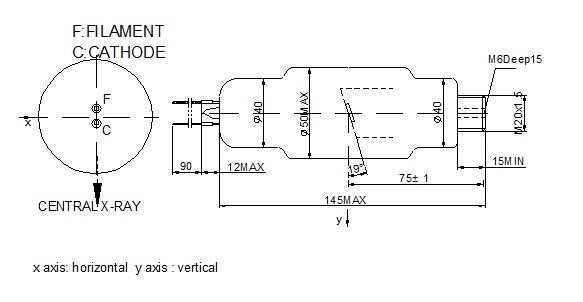

Detailed Images

KL20-2.8-105

Competitive Advantage

Elevated anode heat storage capacity and cooling
Constant high dose yield
Excellent lifetime


  • Previous:
  • Next:

  • Minimum Order Quantity: 1pc

    Price: Negotiation

    Packaging Details: 100pcs per carton or customized according to the quantity

    Delivery Time: 1~2 weeks according to the quantity

    Payment Terms: 100% T/T in advance or WESTERN UNION

    Supply Ability: 1000pcs/ month
