Dental X-ray Tube With Grid

Dental X-ray Tube With Grid

Dental X-ray Tube With Grid

Short Description:

Type: Station anode x-ray tube
Application: For intra-oral dental x-ray unit
Model: KL2-0.8-70G
Equivalent to CEI OCX/65-G
Integrated high quality glass tube


Product Detail

Payment & Shipping Terms:

Product Tags

Description

KL2-0.8-70G Stationary anode X-Ray Tube is especially designed for intra-oral dental x-ray unit and available for a nominal tube voltage with self-rectified circuit. And it is a grid-control tube.
The integrated high quality tube with glass design has one super imposed focal spot and a reinforced anode. It is extremely important to observe the connection diagram and the grid-resistor value. Any change could modify the dimensions of the focal spot, also varying diagnostic performances or overloading anode target.
The high anode heat storage capacity ensures a wide range of applications for intra-oral dental application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support.

Applications

KL2-0.8-70G Stationary anode X-Ray Tube is especially designed for intra-oral dental x-ray unit and available for a nominal tube voltage with self-rectified circuit.

Technical data

Nominal Tube Voltage 70Kv
Nominal Inverse Voltage 85kV
Nominal Tube Current 8mA
Maximum Exposure Times 3.2s
Maximun anode cooling Rate 210W
Max. Anode Heat Content 7.5kJ
Filament Characteristics Uf=4.0V(Fixed),If=2.8±0.3A
Focal spot 0.8(IEC 60336 2005)   At 70kV 8mA with 5kΩ to 25 kΩbias resister(Fixed)
Grid Resistance Value recommended by manufacturer for any tube
Target Angle 19°
Target Material Tungsten
Cathode type W filament
Permanent Filtration Min. 0.5mmAl/50 kV(IEC60522/1999)
Dimensions .80mm length by 30mm diameter
Weight 125 grams

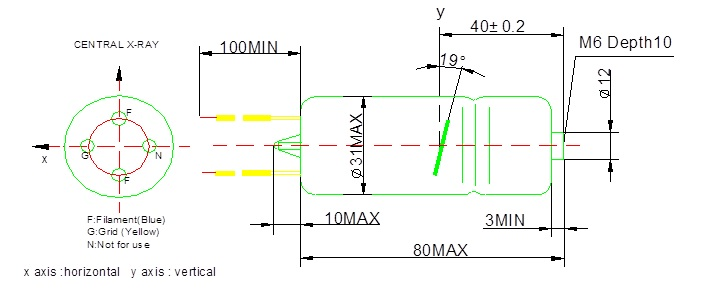

Detailed Images

KL2-0.8-70G

Competitive Advantage

Elevated anode heat storage capacity and cooling
Constant high dose yield
Excellent lifetime


  • Previous:
  • Next:

  • Minimum Order Quantity: 1pc

    Price: Negotiation

    Packaging Details: 100pcs per carton or customized according to the quantity

    Delivery Time: 1~2 weeks according to the quantity

    Payment Terms: 100% T/T in advance or WESTERN UNION

    Supply Ability: 1000pcs/ month
