CX6838 industrial x-ray tube
CX6838 industrial x-ray tube
| Item | Specification | Standard |
| Nominal x-ray tube voltage | 160kV | IEC 60614-2010 |
| Operating tube voltage | 40~160KV | |
| Max tube current | 2mA | |
| Max continuous cooling rate | 320W | |
| Max filament current | 3.5A | |
| Max filament voltage | 3.7V | |
| Target material | Tungsten | |
| Target angle | 25° | IEC 60788-2004 |
| Focal spot size | 0.8x0.8mm | IEC60336-2005 |
| X-ray beam coverage angle | 110°x20° | |
| Inherent filtration | 0.8mmBe&0.7mmAl | |
| Cooling method | Oil immersed (70°C Max.) and convection oil cooling | |
| Weight | 1020g |

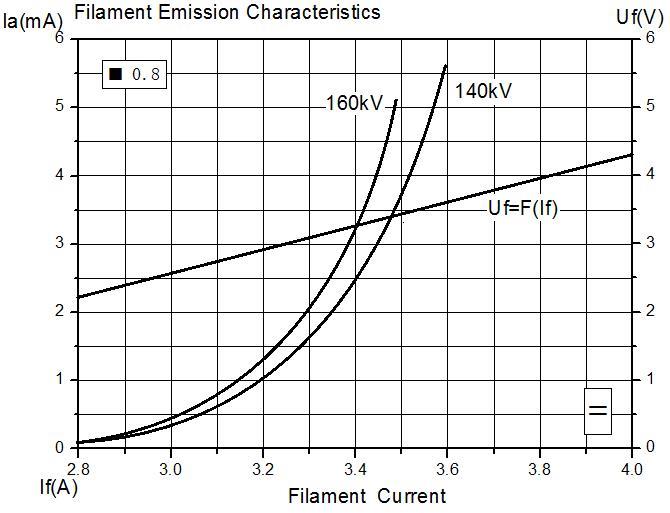

Filament Emission Chart
Read the cautions before using the tube
X-ray tube will emit X–ray when it is energized with high voltage, Special knowledge should be required and cautions need to be taken when handlingit.
1. Only a qualified specialist with X-Ray tube knowledge should assemble, maintain and remove the tube.
2. Sufficient care should be taken to avoid strong impact and vibration to the tube because it is made of fragile glass.
3. Radiation protection of the tube unit must be sufficiently taken.
4. X-ray tube must be handled with cleaning, drying before installing. Must ensure the oil insulation strength is not less than 35kv / 2.5mm.
5. When the x-ray tube is working, the oil temperature must be not higher than 70°C.
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: 100pcs per carton or customized according to the quantity
Delivery Time: 1~2 weeks according to the quantity
Payment Terms: 100% T/T in advance or WESTERN UNION
Supply Ability: 1000pcs/ month
