75KVDC High Voltage Cable WBX-Z75

Short Description:

High Voltage Cable Assemblies for X-ray Machines is a medical high voltage cable assembly rated up to 100 kVDC, well life (aging) type tested in the harshest conditions.

This 3-conductor with rubber insulated high voltage cable’s typical applications are as followings:

1、Medical x-ray equipment like standard x-ray, computer tomography and angiography equipment.

2、Industrial and scientific x-ray or electron beam equipment like electron microscopy and x-ray diffraction equipment.

3、Low power high voltage testing and measuring equipment.

Send email to us

Product Detail

Payment & Shipping Terms:

Product Tags

Highlights

1. A variety of small diameter, highly flexible cable types are available;

2.95% shield coverage with ratings up to 100 kVDC;

3. High temperature 100°C plug with replaceable spring pins;
4. Maintenance free plugs are available if silicone gaskets are used

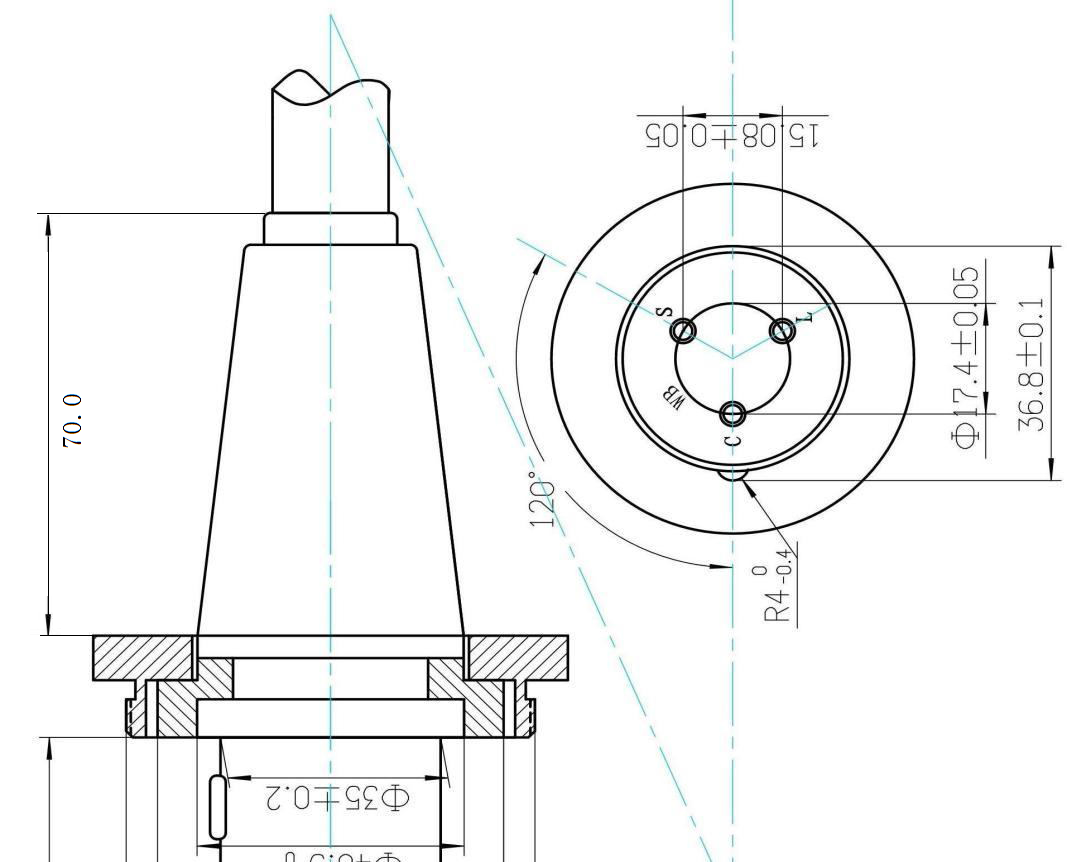

5. Small diameter flange-cable assembly is easy to assemble
6. Ring nut and bolt type separation flange, convenient for later assembly;
7. Injection-molded soft PVC boot to ensure maximum elimination of cable bending stress and ensure longevity

8. Excellent high withstand voltage, highest quality standard
9. Best cable flexibility, easy to integrate
10. Removable PIN connectors, fast maintenance
11. Cable length can be customized for you

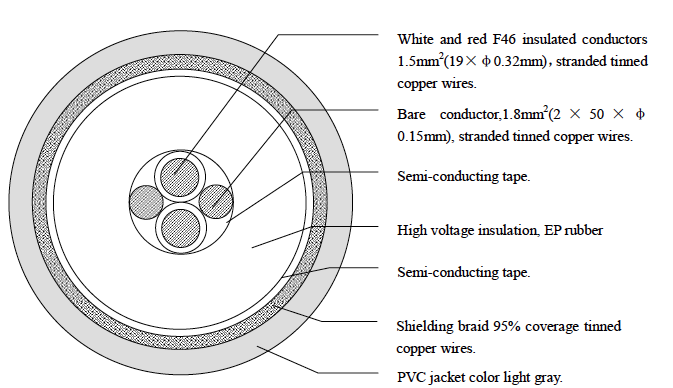

Technical Data

Number of conductor	3
Rated voltage	75kVDC
Routine test voltage (high voltage insulation)	120kVDC/10min
Routine test voltage (conductor insulation)	2kVACrms/1min
Maximum conductor current	1.5mm²:15A
Nominal outside diameter	17.0±0.5mm
Thickness of PVC jacket	1.0mm
Thickness of high voltage insulation	4.5mm
Diameter of core-assembly	4.5mm
Insulation resistance core to shield @20℃	≥1×10¹²Ω·m
Conductor insulation resistance@20℃	≥1×1012Ω·m
Max Conductor resistance bare cond.@20℃	10.5mΩ/m
Max Conductor resistance insul. cond. @20℃	12.2 mΩ/m
Max Shield resistance@20℃	15 .0mΩ/m
Max Capacitance between conductor and shield	165nF/km
Max Capacitance between ins. cond. and bare cord	344nF/km
Max Capacitance between insulated conductors	300nF/km
Cable Min bending radius(static insulation)	40mm
Cable Min bending radius(dynamic installation)	80mm
Operating temperature	-10℃~+70℃
Storage temperature	-40℃~+70℃
Net weight	351kg/km
